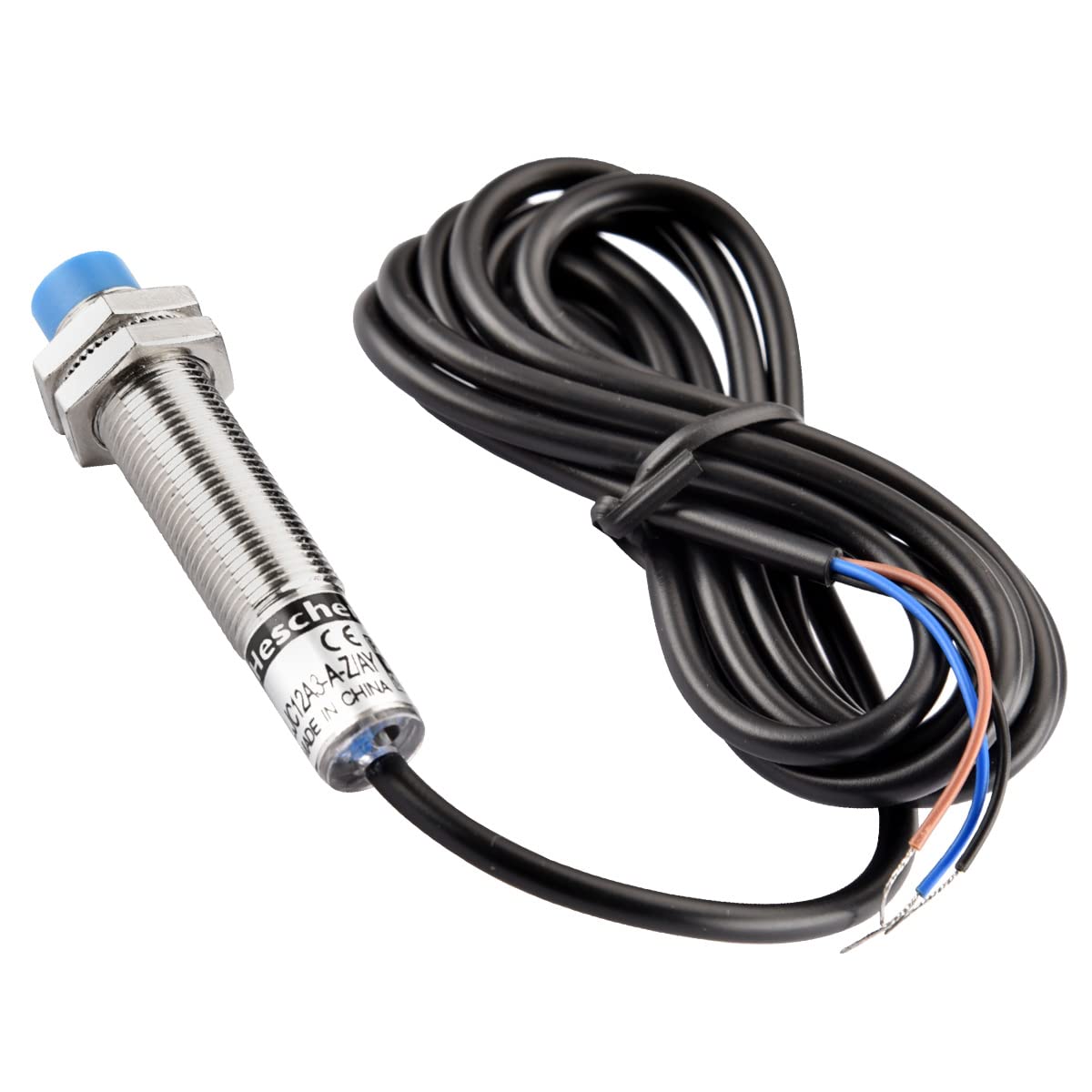

Heschen M12 Capacitive Proximity Sensor Switch Non-Shield Type LJC12A3-A-Z/AY Detector 1-5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires
Product details
| Management number | 247530778 | Release Date | 2026/08/16 | List Price | US$5.80 | Model Number | 247530778 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Detection Object:Can detect any dielectric.Delay Distance:10% below of the detection distance.Supply Voltage:DC10-30V Impulse (p-p)10% below.Comsuption Current:13mA below.Control Output: 200mA below.Loop Protection :reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity:During operation , storage : individually-30～＋65℃(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above ( DC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.Protection structure: IP67(IEC specification)
- Mounting Hole Diameter: 12mm
- Detecting Distance: 5mm±10%; Set distance: 0-4mm
- Output Type: PNP Normally Closed(NC); Non-Shield Type
- Current Output: 200mA; Working Voltage: 10-30 VDC
- Detect Object: Can detect any dielectric
| UPC | 670534184004 |
|---|---|
| ASIN | B07XMK5D3F |
| Color | Blue |
| Model | HS-LJC12A3-A-Z/AY |
| Terminal | Screw |
| Brand Name | Heschen |
| Unit Count | 1 Count |
| Part Number | HS-LJC12A3-A-Z/AY |
| Switch Type | Proximity Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Control Type | automatic |
| Manufacturer | Heschen Electric |
| Actuator Type | No Physical Actuator |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Rca |
| Control Method | Touch |
| Current Rating | 0.2 A |
| Operation Mode | automatic |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 6 volts |
| Specification Met | Ip67(iec Specification) |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP67 |
